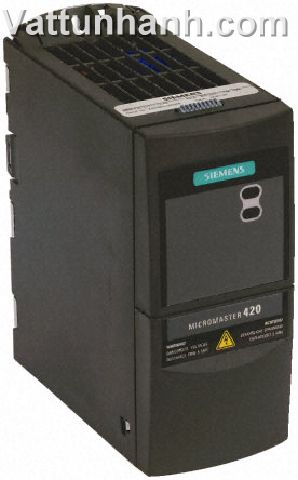

Controller,motor speed,without EMC filter,0.55kW,480Vac,3 phase
Mã sản phẩm: 6SE64202UD155AA1
Danh mục:Biến tần Schneider, ABB, Omron,..
Hãng sản xuất:
Ambient Temperature=-10 → +50°C|Control Panel=Yes|Current Rating=2.8 A|For Use With=Micromaster 420 Series|IP Rating=IP20|Output Frequency=650Hz|Overall Depth=149mm|Overall Length=173mm|Overall Width=73mm|Phase=Three Phase|Power Rating=0.55 kW|Supply Voltage=380 → 480 V ac
Hết hàng
Giá: Liên hệ
Micromaster 420
Micromaster 420,1-phase 230V input or 3-phase 440V input
Micro processor controlled, using IGBT technology
Simple to commission & set up
Works straight from the box, using factory set defaults. To change these defaults an optional operator panel is required
Selectable switching frequency to enable quiet motor operation
Can be used for advanced motor control applications via its comprehensive parameter lists
Modular design
Programmable & scalable analogue input 0 to 10V
Fully programmable relay output
Integral class A EMC filter for single phase type
External options for PC communications, operator panels or Profibus communications module
Optional operational panels for greater control, parameter setting/changing
Flux current control (FCC) for good dynamic response & motor control
Fast current limitation (FCL) for operation with trip-free mechanism
Built in d.c. injection brake
Acceleration/deceleration times with programmable smoothing
Closed-loop control using PI
Comprehensive range of protection functions e.g. over temperature, short circuit
The instructions and software utilities are supplied on a CD compatible with Windows NT and 2000 only
Note: An operator panel will be required to operate this unit or to modify the factory set parameters.
| MM410 | MM420 | MM440 | |
| Drive type | Contactor | General | High Performance |
| Applications | |||
| Pumps | ● | ● | ● |
| Fans | ● | ● | ● |
| Conveyors | ● | ● | ● |
| Food Processing | ● | ||
| Access Control | ● | ||
| Hoists | ● | ||
| Packaging | ● | ||
| Textiles | ● | ||
| Load Characteristics | |||
| Constants | ● | ● | ● |
| Variable Torque | ● | ● | ● |
| Flux Control Current | ● | ● | ● |
| Sensorless Vector | ● | ||
| True Vector | ● | ||
| Communications | |||
| USS | ● | ● | ● |
| Profibus | ● | ● | |
| DeviceNet | ● | ● | ● |
| Digital I/O | |||
| Inputs | 3 | 3 | 6 |
| Outputs | 1 | 1 | 3 |
| Analogue I/O | |||
| Inputs | 1x0-10V | 1x0-10V | 2x0-10V |
| Outputs | None | 1x4-20mA | 2x4-20mA |
| Protection | |||
| Overload | ● | ● | ● |
| Stall | ● | ● | ● |
| Earth Faults | ● | ● | ● |
| Short Circuits | ● | ● | ● |
| Over Temp. | ● | ● | ● |
